The Making of the Melloman

Built by Mike Walters, Summer 2005

Mystery Circuits Home

Back to Mystery Circuits Projects


The Melloman was mostly built in my kitchen....................

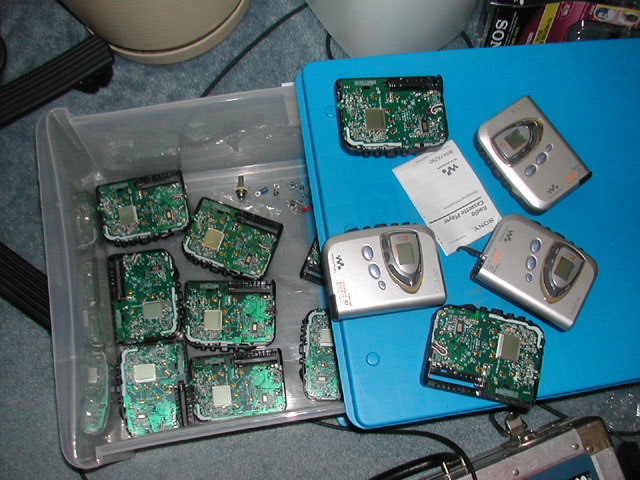

Bucket o' Walkman.

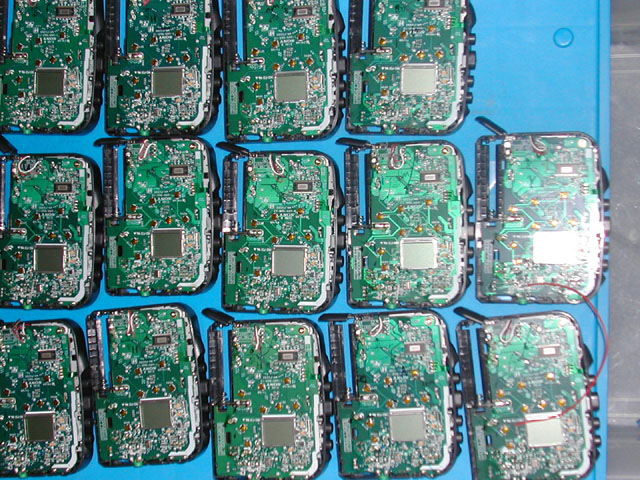

Walkman Army



Breadboarding first idea of opto-coupler keying.

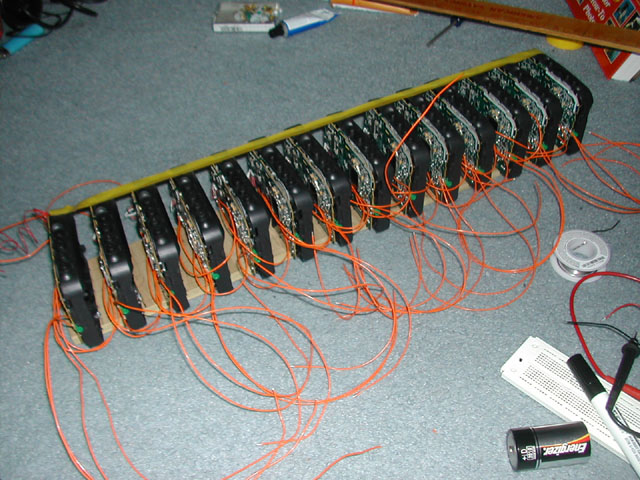

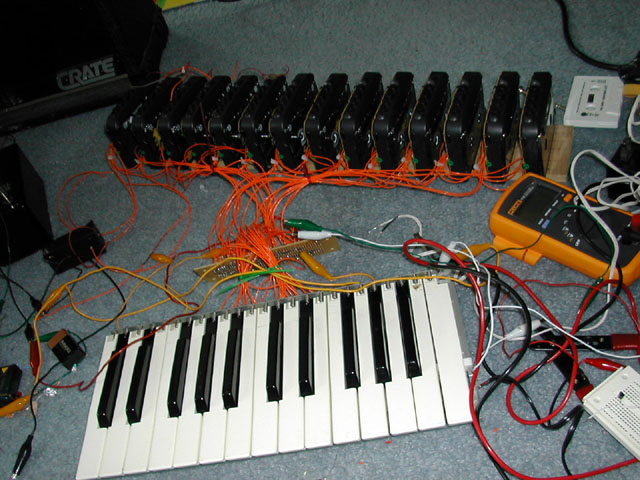

Wired up, testing with D cell for five minutes, max.

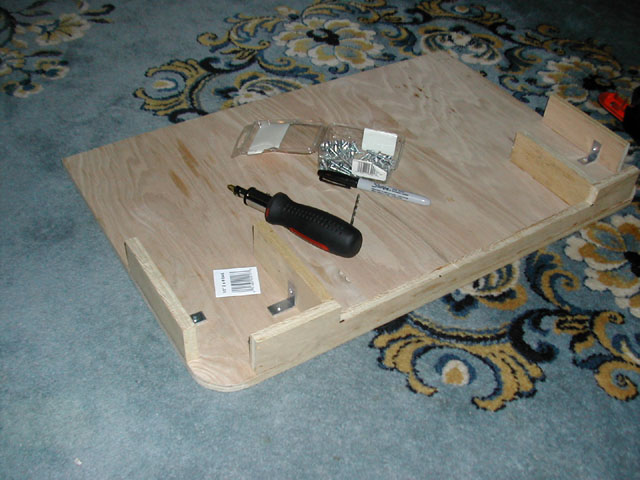

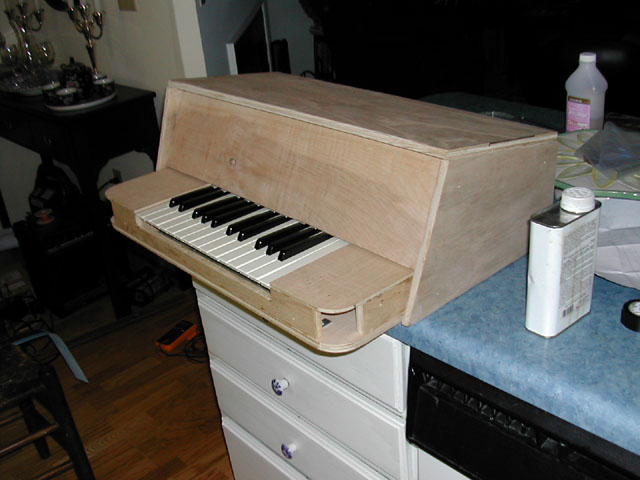

Starting to make a case.

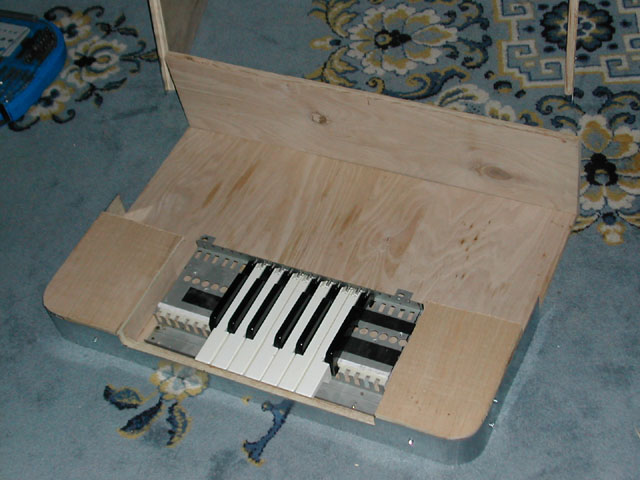

Starting to grow teeth.

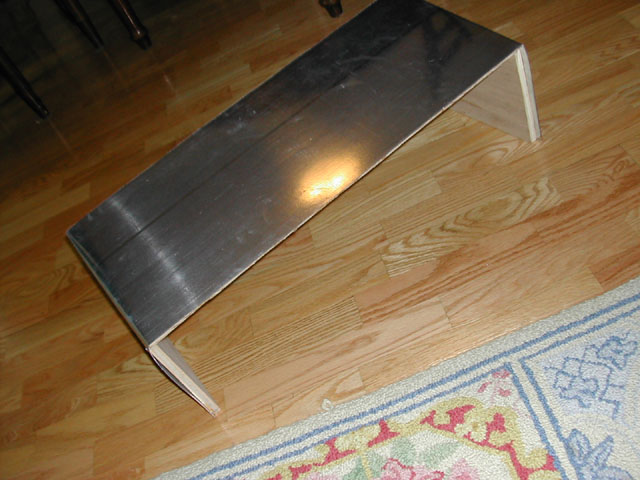

Beginnings of a top. This things full of sheet metal.

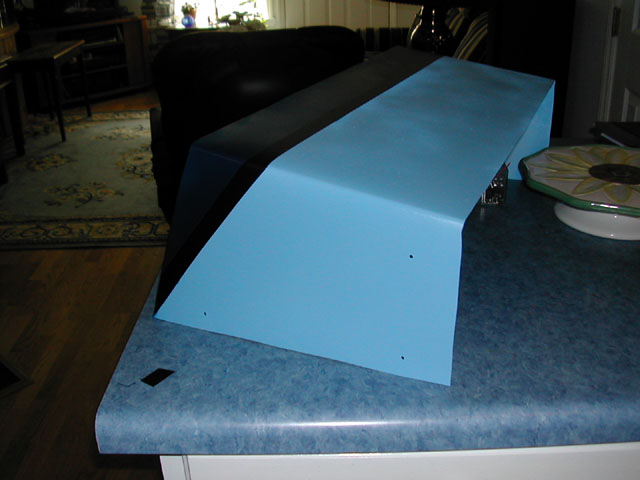

Navy Blue, Baby Blue, and Electrical Tape.



Hamburger Helper

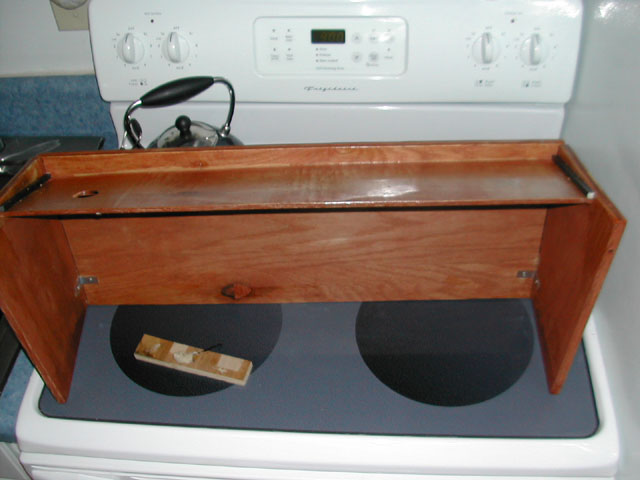

Dinner will be ready in fifteen minutes or so.

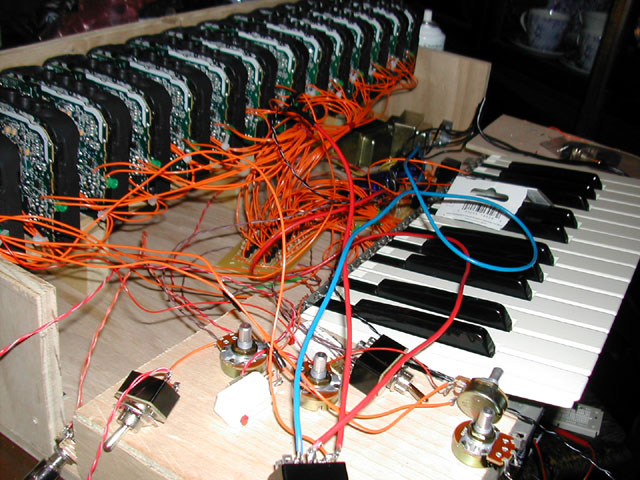

I should have just kept it like this.



"Yes, Love, you'll have your kitchen back soon. I have a question, let's order pizza. No cheese."

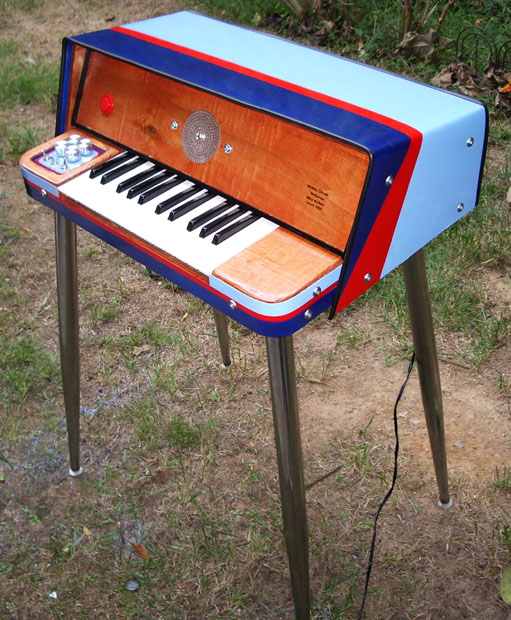

Now to final product... The Melloman
