Radio Ace
Built by Mike Walters
Chapel Hill, NC 2015
mike@mysterycircuits.com

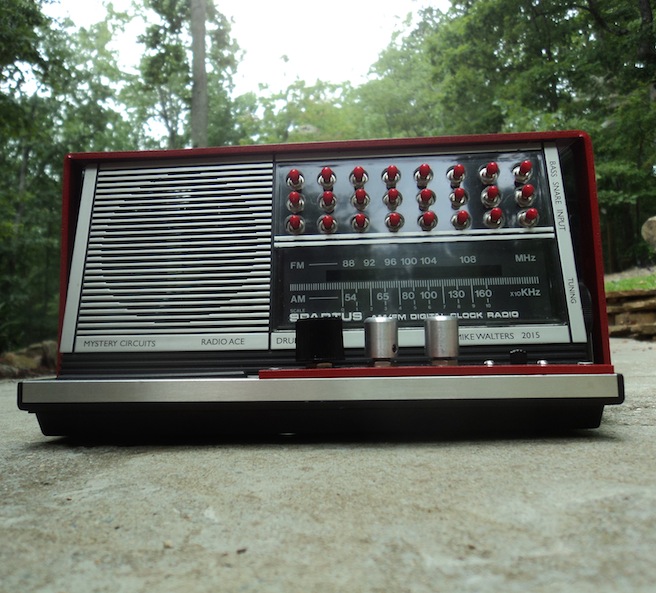

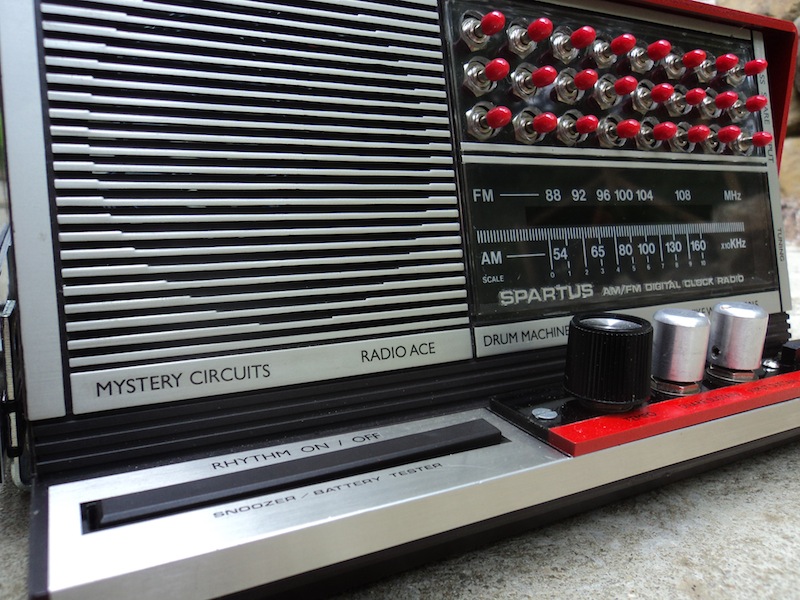

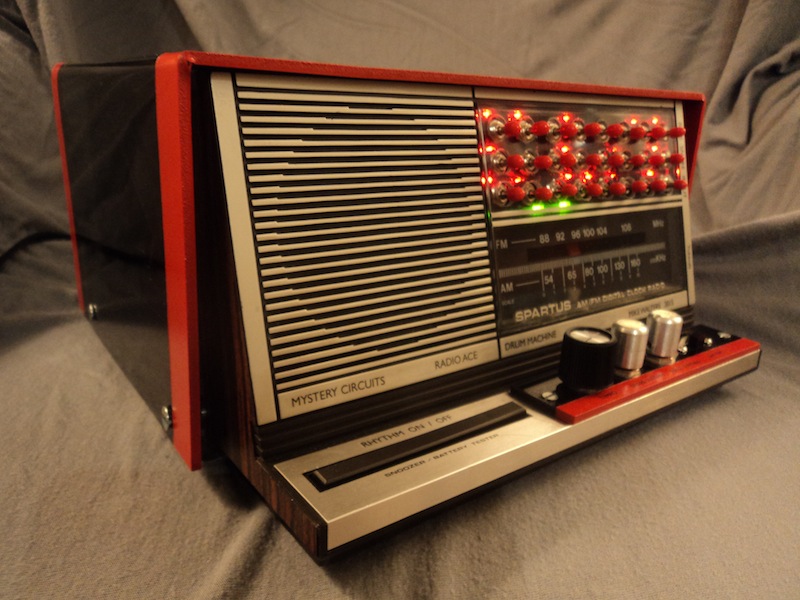

The Radio Ace is an AM/FM drum machine built for Mark Lewis in 2015. Using a late 1970s clock radio, the Radio Ace is a 3 x 8 programmable drum machine that has an analog bass drum, a gated input, and it uses the audio from the radio as the source for the snare drum noise. The snare (radio) and the line level input have individual sustain controls. The tempo goes from sloooow all the way up into the audio spectrum.
Radio Ace and Yamaha CS-01
Gotye jamming with the Radio Ace right before it was complete
Audio Samples

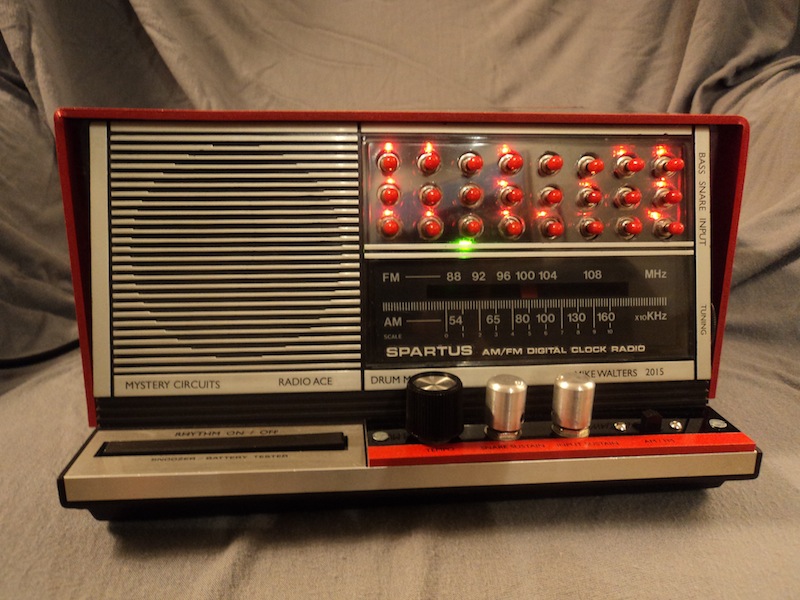

The bass drum is analog, and is a modified version of the same circuit in a Korg Monotribe. The snare drum is audio directly from the built in AM/FM radio, which tunes via a knob on the side of the Radio Ace. A slider switch changes the band from AM to FM. The input takes any (hot) line level, and gates it according to the sequencer. Both sustain controls are identical. Turned all the way up, the snare or the input are legato, turned all the way down, they're staccato. There is a red LED glued to the bottom of the tuner bar that flashes on the 1 and 5 counts. I used a capacitor to make it fade.
The "Snoozer" button no longer gives you 10 more minutes of extra sleep. It now turns on and off the rhythm.
The Build

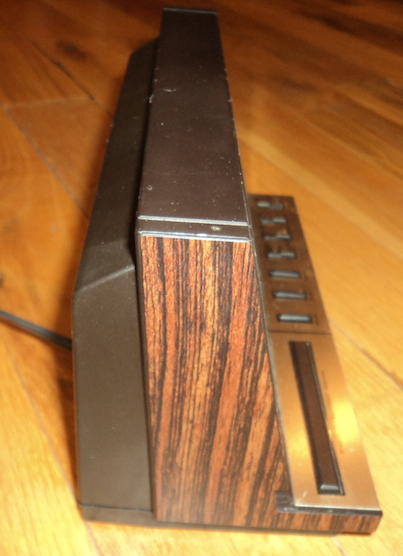

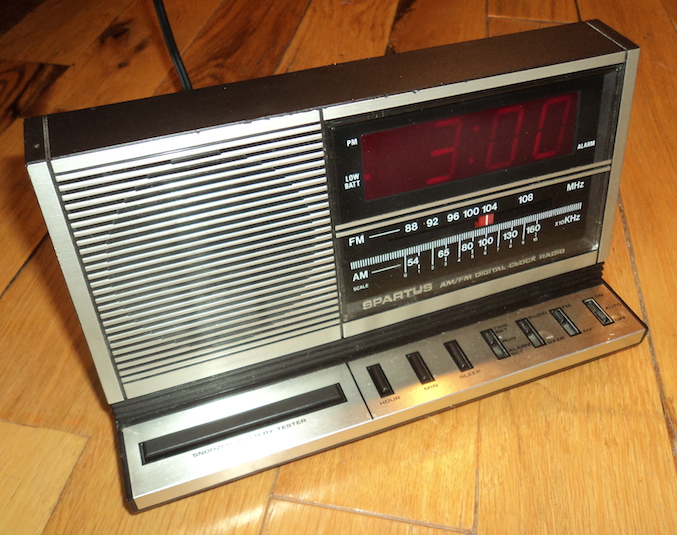

The radio is something I found at the thrift store. It's a SPARTUS brand. They made some very cool radios!

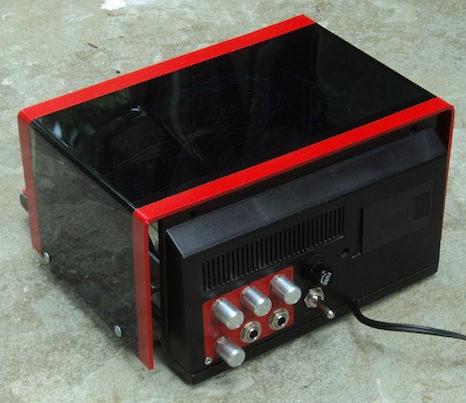

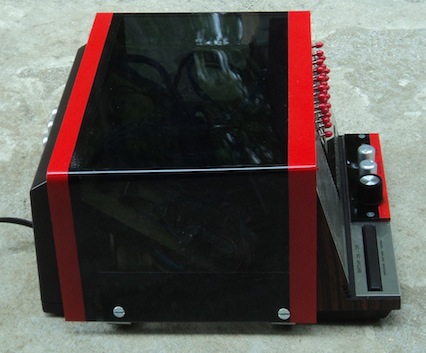

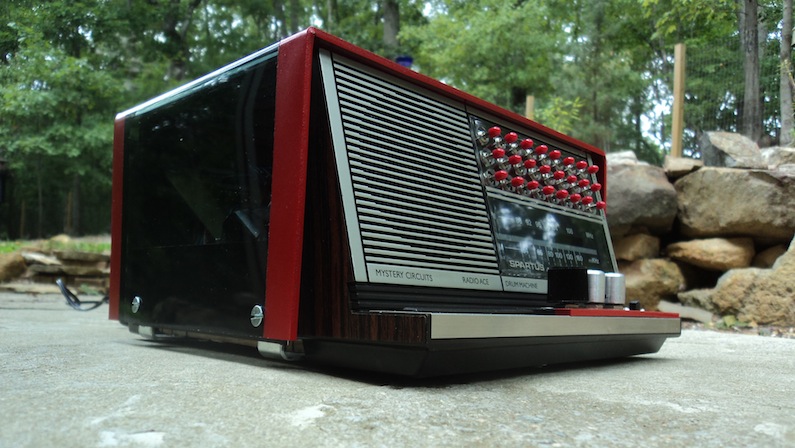

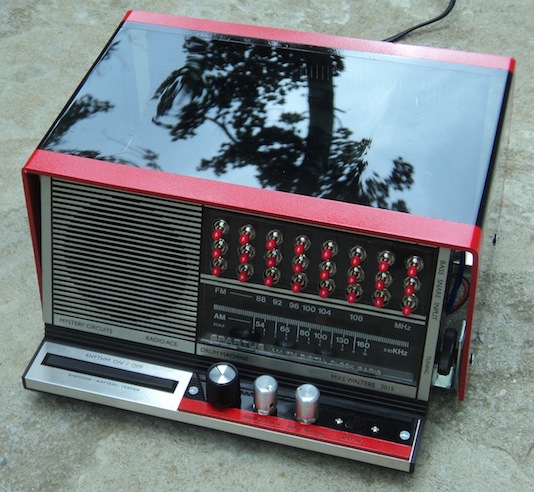

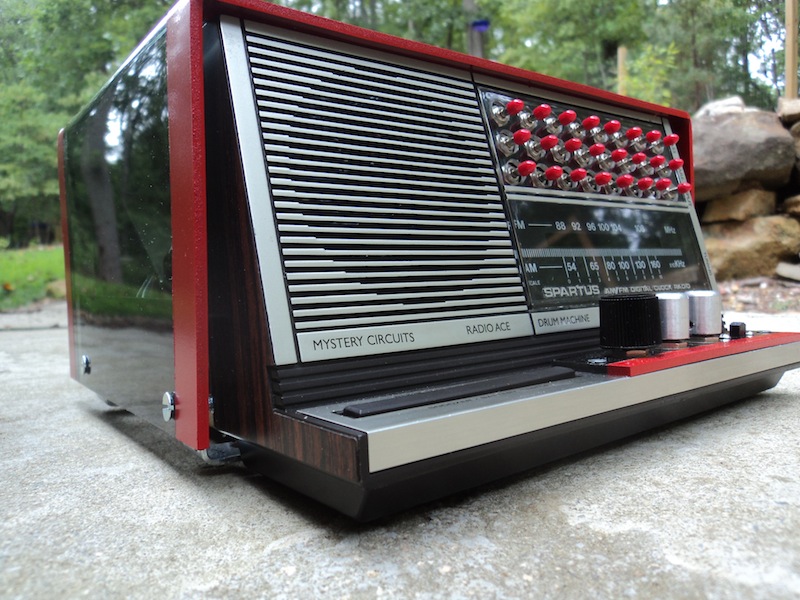

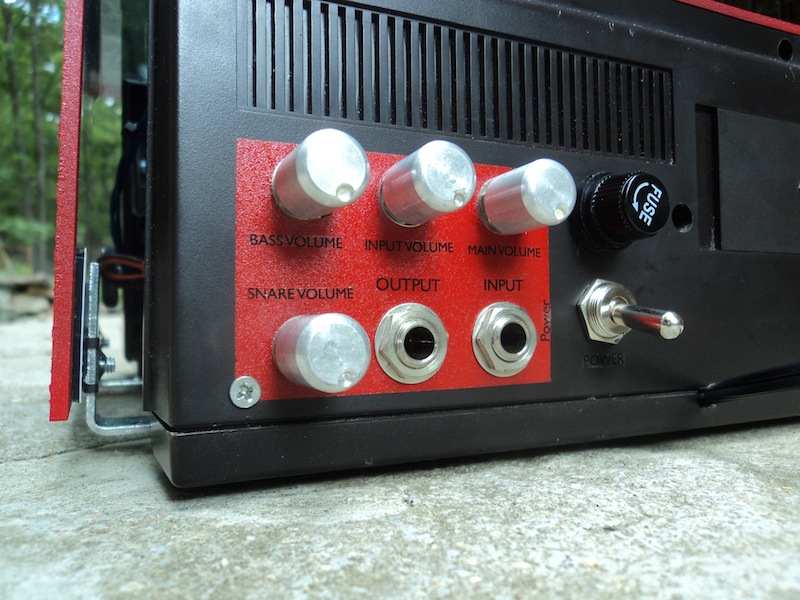

I removed the LED clock, and replaced it with the 24 matrix switches. Unfortunately, the overall depth of the radio was way too shallow to accommodate all of the circuits and power supplies, so I stretch-limoed it by building a new bottom. The top is transparent black plexiglass. I cut out a rectangle the right size with my CNC, and manually bent the sides using a heat gun and a metal bending brake. I got it right in two tries!
More Pictures
The Radio Ace is an AM/FM drum machine built for Mark Lewis in 2015. Using a late 1970s clock radio, the Radio Ace is a 3 x 8 programmable drum machine that has an analog bass drum, a gated input, and it uses the audio from the radio as the source for the snare drum noise. The snare (radio) and the line level input have individual sustain controls. The tempo goes from sloooow all the way up into the audio spectrum.
Radio Ace and Yamaha CS-01
Gotye jamming with the Radio Ace right before it was complete
Audio Samples
Audio
Sample 1 - Tweaking the sustain of the Snare drum, and
sweeping through FM stations
Audio Sample 2 - The Snare tunes into something "musical"
Audio Sample 3 - Running Minimoog through Radio Ace, sweeping Input sustain from open to choppy, then changing states of input steps from eighth notes to less.
Audio Sample 4 - Running Polymoog through Radio Ace, then turning up tempo all the way! Notice the subtle gallop at the beginning and towards the end.. This happens when the input sustain is turned all the way down, and the input is quiet. It's a "flaw", but I liked the effect, so I kept it.
This is how it works... The clock is a 555, with variable frequency
(tempo). The clock feeds a 4017 decade counter wired to repeat after 8
steps. On the front panel, there are 24 mechanical push on/push off
latching switches, with LEDs wired above them that light when on. The
output of these switches go to a bank of 3 input AND gates. The steps
from the sequencer go to the other inputs, as does the pulse from the
555. If the switch is on, AND the sequence is on, the output of the
gate goes hi when the 555 pulses. The 3 input with clock signal is
necessary because the 4017 stays high the duration of the step. So if
the very next step is programmed to trigger, the gate won't go low in
between, and won't retrigger. I ran into this problem when I built the
Trommemaskine, but on that I used differentiators. Audio Sample 2 - The Snare tunes into something "musical"
Audio Sample 3 - Running Minimoog through Radio Ace, sweeping Input sustain from open to choppy, then changing states of input steps from eighth notes to less.
Audio Sample 4 - Running Polymoog through Radio Ace, then turning up tempo all the way! Notice the subtle gallop at the beginning and towards the end.. This happens when the input sustain is turned all the way down, and the input is quiet. It's a "flaw", but I liked the effect, so I kept it.
How It Works
The bass drum is analog, and is a modified version of the same circuit in a Korg Monotribe. The snare drum is audio directly from the built in AM/FM radio, which tunes via a knob on the side of the Radio Ace. A slider switch changes the band from AM to FM. The input takes any (hot) line level, and gates it according to the sequencer. Both sustain controls are identical. Turned all the way up, the snare or the input are legato, turned all the way down, they're staccato. There is a red LED glued to the bottom of the tuner bar that flashes on the 1 and 5 counts. I used a capacitor to make it fade.
The "Snoozer" button no longer gives you 10 more minutes of extra sleep. It now turns on and off the rhythm.
The Build
The radio is something I found at the thrift store. It's a SPARTUS brand. They made some very cool radios!
I removed the LED clock, and replaced it with the 24 matrix switches. Unfortunately, the overall depth of the radio was way too shallow to accommodate all of the circuits and power supplies, so I stretch-limoed it by building a new bottom. The top is transparent black plexiglass. I cut out a rectangle the right size with my CNC, and manually bent the sides using a heat gun and a metal bending brake. I got it right in two tries!
More Pictures
